Description

FEATURES

Uses true frequency hopping Secure Link Technology making it
compatible with most Tactic SLT receivers and Tx-R (transmitter
ready) aircraft
Pushbutton programming controls and menus are intuitive and
straightforward
Eight preprogrammed mixes and four programmable mixes
Twenty model memory
User-assignable switches, one momentary switch, two 3-position
switches, and four two position switches
Helicopter programming with adjustable 6-point throttle and pitch
curves
Digital trims for aileron, elevator, throttle and rudder with slow/
fast adjustment
All channel reversing, sub-trim, and travel adjustment
Dual rates and exponential on aileron, elevator and rudder channels
Large, easy-to-read graphing LCD screen with adjustable contrast
Ball bearing gimbals and adjustable stick lengths
Up/Down and battery timers
Charge jack for optional NiCd/NiMH packs (not included)
Low voltage alarm
Firmware upgrade jack
Wireless trainer system with selectable channels, compatible with the
Tactic TTX600 and the TTX404 as the student or trainer radios
External antenna rotates and folds for easy storage
Ball bearing gimbals and ergonomic case
One year limited warranty through Hobby Services beginning at date of
purchase

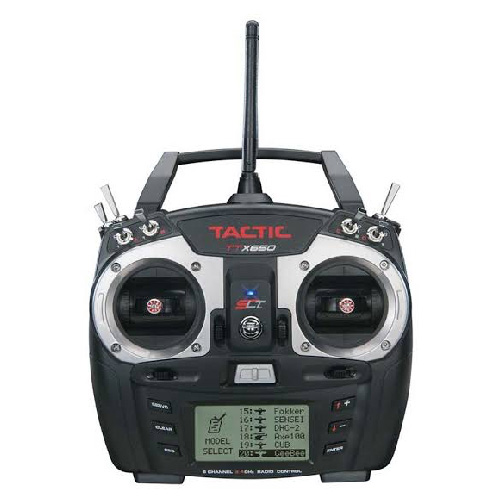

Tactic TTX650 2.4GHz 6-Channel Transmitter with Manual
Four AA alkaline batteries

SLT receiver and servos of modeler’s choice

Frequencies: 2.403-2.480GHz
Protocol: Tactic SLT
Modulation: FHSS spread spectrum
Input Power: 3.40-7.00V DC, four 1.5V alkaline or 1.2V NiCd/NiMH
“AA” single cells, jack included for connecting optional 4.8V NiCd
or NiMH pack (not included)
Current Consumption: approx. 100-102mA
Low Voltage Alarm: 3.20-5.60V adjustable
Memories: 20 with copy function
Stick Modes: Two
Display: 128×64 graphing LCD with adjustable contrast
Channel Controls: Reversing, End Points, Sub-Trims, Dual Rates,
Exponential
Timers: Count Up Stopwatch, Count-Down, Flight Timer
Trainer System: Wireless, Tactic SLT compatible
